Fee Vault XL

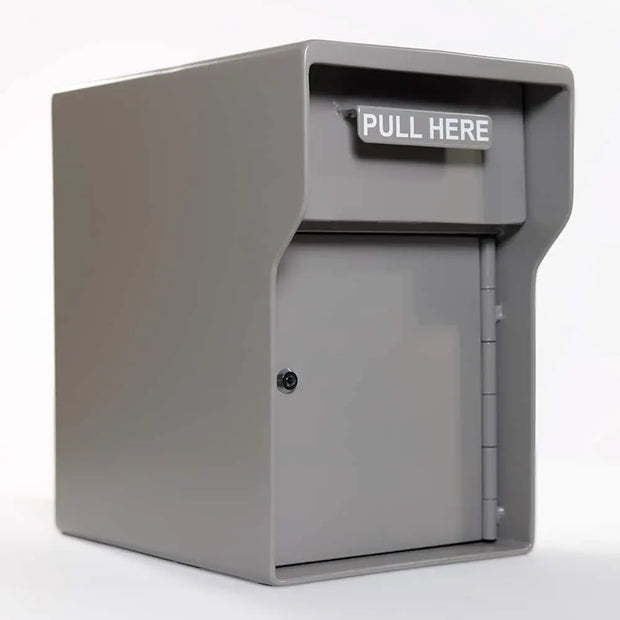

The Fee Vault XL
— Anti-Fishing Supreme XL Collection Box
12" W x 18" H x 18" D @ 125 LBS.
The same trusted security as our Payment Boxes—with added protection against fishing attempts. The Fee Vault XL provides extra storage room and uses a heavy recessed baffle with built-in teeth to help keep deposited payments, envelopes, and keys safely inside.
Instead of a simple open slot, the baffled delivery door separates the deposit area from the locked compartment below. Close the top door, and your deposit drops into secure storage.
Vault Lock Extreme with a Medeco® lock and 2 keys is included at no extra cost—a $95 value. Prefer keyless access? Add the optional 4-digit combination lock with keyed backup access to work with the included Vault Lock.
Photos shown may include optional custom colors and accessories.
How It Works
- Open the top door and place payments, envelopes, or keys into the 11½" W x 1½" H baffled deposit opening.
- Close the top door. The deposited items drop into the locked compartment below.
- Unlock the retrieval door to collect the contents.
The heavy recessed baffle with built-in anti-fishing teeth helps deter attempts to pull deposited items back out. The reinforced recessed retrieval door helps resist prying.
Key Specifications
- Size: 12" W x 18" H x 18" D
- Weight: 125 lbs.
- Reinforced retrieval door: 3/16" steel, recessed to help resist prying
- Deposit opening: 11½" W x 1½" H
- Deposit system: Heavy recessed baffle with anti-fishing teeth
- Hinge: 2" continuous welded steel hinge
- Included lock: Vault Lock Extreme with Medeco® lock and 2 keys
- Bottom mounting holes: 4 holes spaced 6¾" apart
Special Features of the Fee Vault XL
- 125 lbs. of steel construction to help protect collected payments and keys
- Heavy recessed baffle with anti-fishing teeth for added protection at the deposit opening
- Reinforced recessed doors designed to resist prying
- Vault Lock Extreme with Medeco® lock included as standard equipment
- 2" continuous welded steel hinge
- Hand-welded construction—no rivets or spot welds
- Protective body overhang to help shield against rain and vandalism
- Powder coating inside and out for durability and weather resistance
- Storage for approximately 2 weeks of deposits, depending on the size and volume of items deposited
Included with Every Fee Vault XL
- Vault Lock Extreme with Medeco® lock—a $95 value included at no extra cost
- 2 Medeco® keys
- Free 1¾" vinyl adhesive numbers or letters for the front door—request your wording when ordering
- “Pull Here” on the top door
- Pre-drilled bottom mounting holes for compatible steel posts, racks, and other suitable surfaces
- Powder-coated finish inside and out, in your choice of standard Slate Gray or Glossy Black
Optional 3" side lettering is available for an additional charge.
Mounting Options
The Fee Vault XL is pre-drilled on the bottom with 4 holes spaced 6¾" apart to fit our Large Posts.
- Matching In-Ground Post: Large 5" x 5" x 57" steel post
- Surface Mount / Break-Away Post: 5" x 5" steel post for existing sidewalks or concrete slabs
- Existing posts, racks, or surfaces: Can be used when compatible with the Fee Vault XL's mounting pattern and weight
Add a matching post to your order for stable support.
Custom Options & Upgrades
4-Digit Combination Lock with Keyed Backup Access
Add a 4-digit combination lock to work with the included Vault Lock. Choose combination access for everyday use, with keyed access available as a backup. View combination lock details.
Colors & Lettering
- Standard colors: Slate Gray or Glossy Black
- Custom solid powder-coat colors available for an additional charge—see the color chart
- 3" side lettering available for an additional charge
Rear-Door Access
Choose either rear-access configuration at the same rear-door option price:
- Rear access only: Front retrieval door replaced with a welded steel plate
- Front and rear access: Both doors keyed alike; purchased lock upgrades apply to both doors
Post Options
Choose an in-ground or surface-mount post to suit your installation. See the mounting options above for details.
Shipping and Lead Time
Our Fee Vault XL units are built in the USA and ship directly from our facility in Grants Pass, Oregon. Each unit is securely packaged for transit. We ship to the lower 48 states.
Production Time
- In stock: The Fee Vault XL ships the same or next business day
- Not in stock: Production may take up to 20 business days
- Multiple units: Contact us for current lead times
Transit Time
- FedEx Ground: Typically 2–5 business days, depending on location
- Freight: 1–10 business days for oversized or multi-unit shipments; quote required
Shipping Carrier
- FedEx Ground: Generally used for orders of 1–4 Fee Vault XL units
- Freight: Generally used for 5 or more units and often more cost-effective for larger quantities
Tracking
Tracking information is automatically emailed as soon as your order leaves our facility in Oregon.
Need it sooner?
Rush builds are sometimes available, depending on the production schedule. Contact us before ordering to confirm the fastest ship date and current stock status.
